AZ-220WB External Sound Unit with integral strobe & sounder

Outdoor Bell Box with S.A.B, single piezo sounder, xenon strobe flasher, twin LED's, lid and wall anti-tamper, Polycarbonate / ABS construction

AZ-220  Outdoor Siren with White Cover and Blue Lens

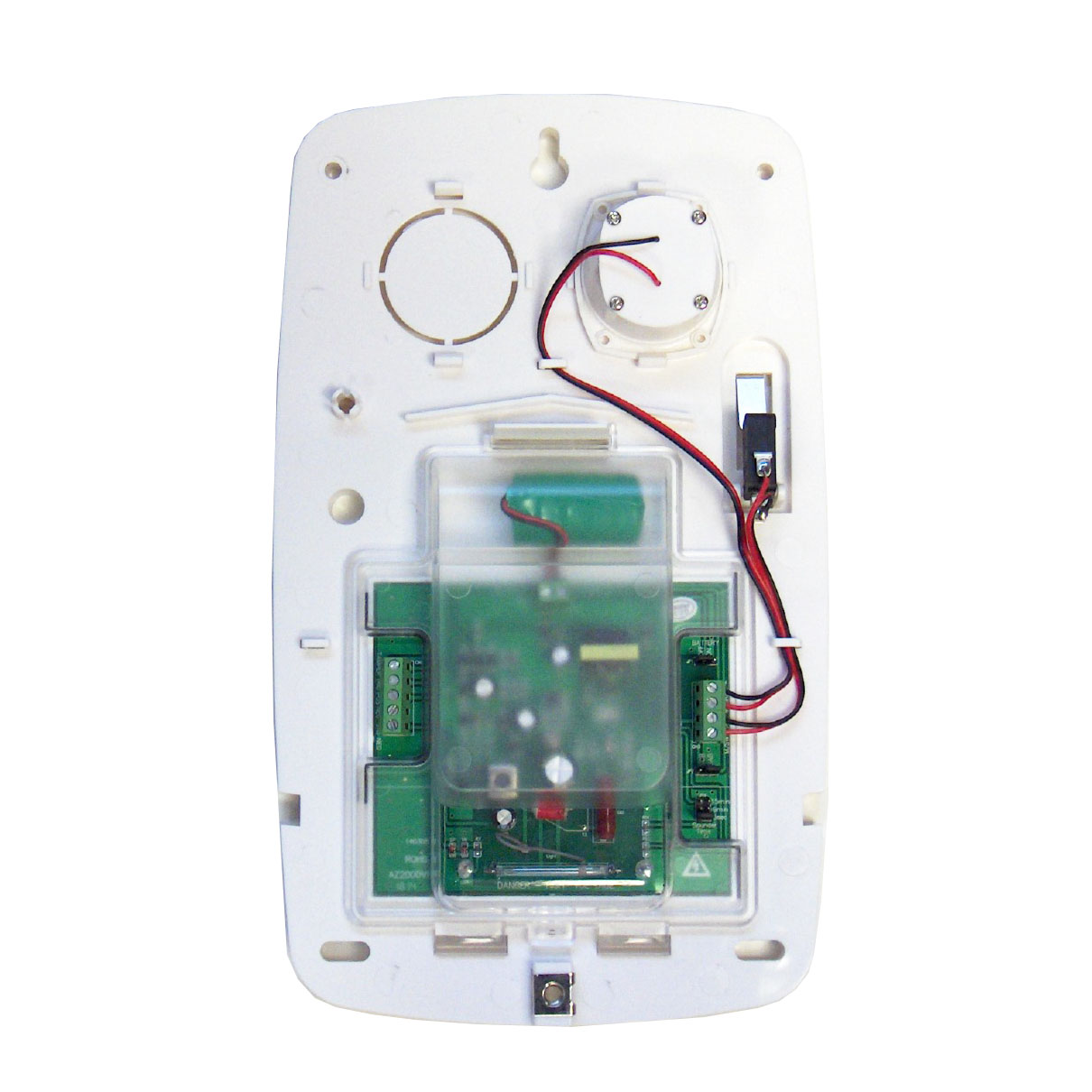

AZ-220 wall mount Backplate with PCB protection cover

Product Features:

The AZ-220 is a low profile fully featured Bell Box in Polycarbonate / ABS enclosure complete with high output Piezo sounder, Xenon Strobe Flasher, On-board S.A.B unit and twin flashing LED's.

  • Slim-line enclosure in PolyCarb / ABS material

  • White Cover with Blue Lens

  • Single piezo sounder up to 112 decibel output

  • Xenon Strobe flasher

  • Twin alternating 'comfort' LED's in green

  • On board SAB - Self Actuating Bell

  • On board NiMH Battery - 6V

  • Two way anti tamper microswitch for wall or lid tamper

  • Internal PCB cover offering 'double skin' for impact and water resistance

  • conformally coated electronics for weather resistance

  • selectable cut-off time 9 / 15 minutes

  • 5 second test feature with engineer 'hold-off' facility

  • Complies with EN50131-4 Grade 2, Environment class IV, as a warning device


  • Bell box Cover: White / Red

  • Lens: Blue / Red / White


Product Specification  Instruction Manual

Available options

AZ220WB - (white cover / blue lens)
AZ220WW - ( white cover / white lens)
AZ220RB - ( red cover / blue lens)

out of stock iconOUT OF STOCK

AZ220WR - ( white cover / red lens)
AZ220RW - ( red cover / white lens)

out of stock iconOUT OF STOCK

AZ220RR - ( red cover / red lens)

out of stock iconOUT OF STOCK
