CAT5e Outdoor Networking cable, 4 x unshielded twisted pair ( UTP), Copper coated aluminium (CCA) core conductors, PE weather resistant ‘Duct Grade’ outer sheath in Black, 100m.

CAT5E-CCA External UTP Network cable

CAT5E-CCA/EXT  with weather and corrosion resistant black Polyethylene outer Sheath.


CAT5E-CCA External U/UTP Network Cable

Multi twisted pair  UTP cable used in Computer Networking, Data transmission, CCTV Video and Voice over I.P applications.

This specialist outdoor cable consists of 4 unshielded twisted pair CCA conductors with Polyethylene insulation and weather/corrosion resistant 'Duct Grade' outer sleeve in black.

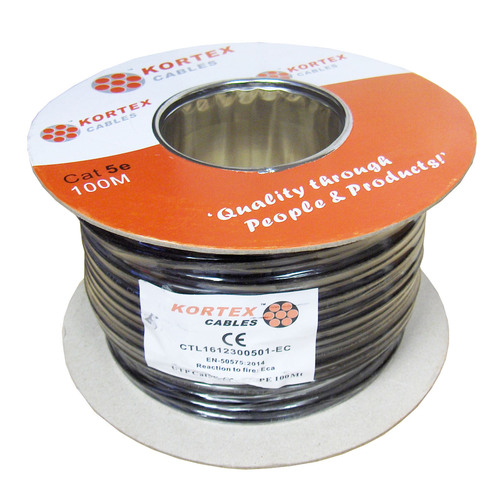

Supplied on 100M Reel

  • Application: Networking / CCTV video

  • 4 pair 0.50mm CCA conductors, 24AWG

  • U/UTP Unshielded Twisted Pairs

  • HDPE Polyethylene Insulation 0.9mm

  • PE Outer Sheath 5.1 mm

  • Sheath colour : BLACK

  • Minimum, bending radius 4 x O.D

  • Frequency range 100Mhz

  • current rating 0.5 Amps

  • Not recommended for POE applications

  • EIA/TIA 568 A&B wiring compatible

  • CE & RoHS compliant

  • temp -20c to +60c

  • 100M Reel

 Cable Specification
